CSD Compact Mixers with BT and DSP Effects
170.876
- Vanlig pris
-
1.795,00 kr - Vanlig pris
-
- Salgs pris
-
1.795,00 kr
MVA inkludert.

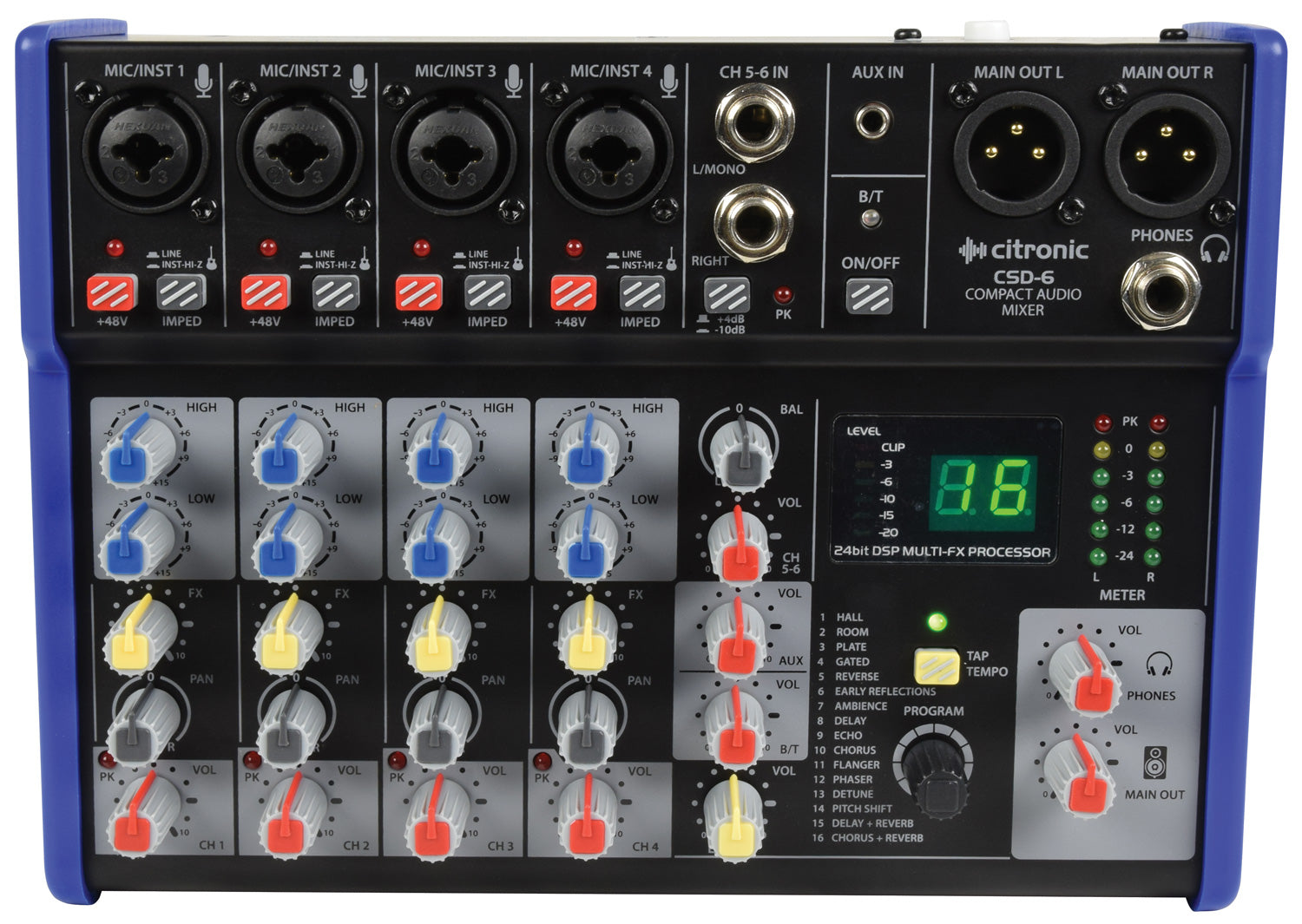

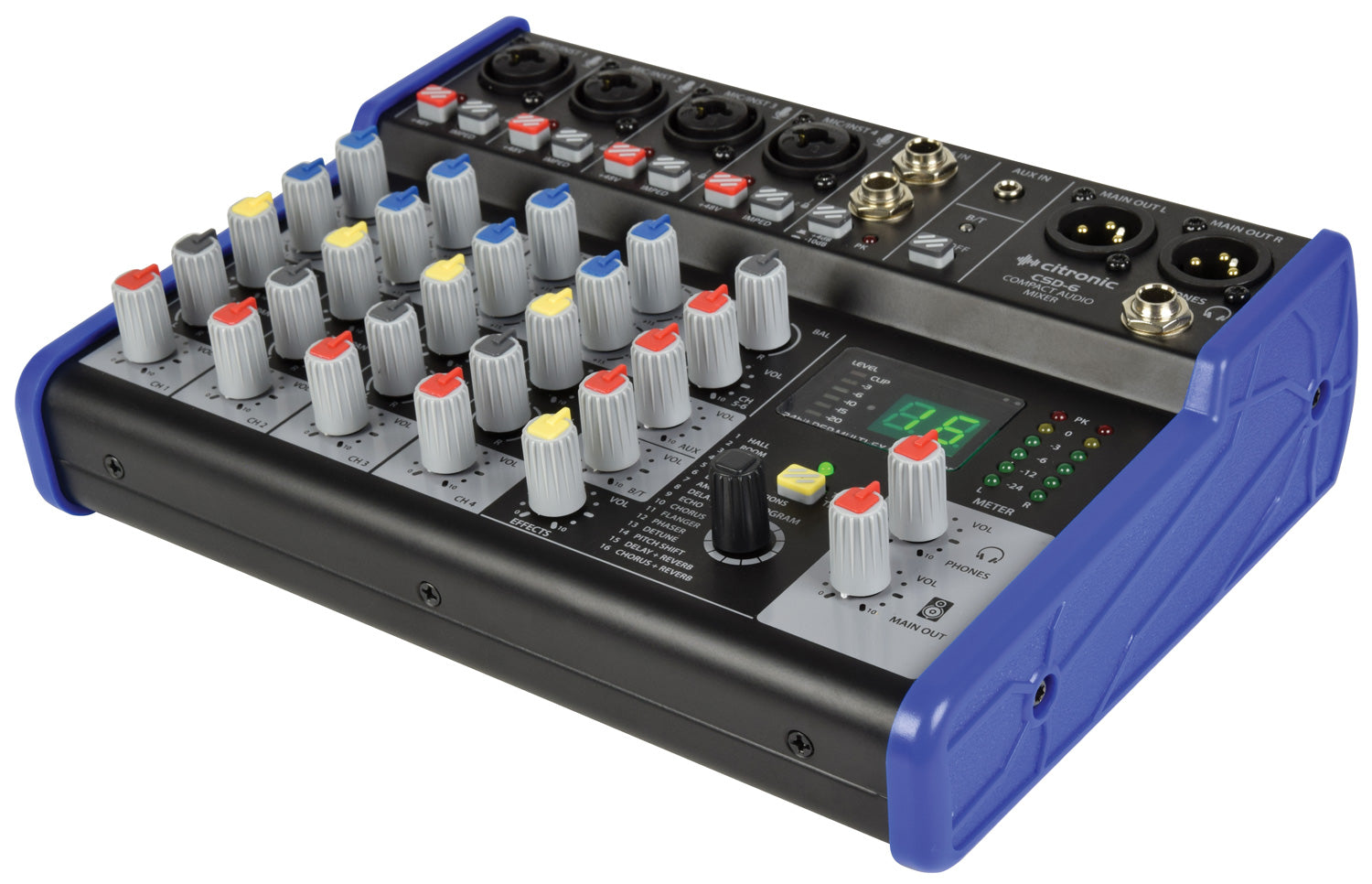

CSD Compact Mixers with BT and DSP Effects
Compact format audio mixer with 2, 4 or 6 mono input channels and a stereo line input. Each mono channel has a combo XLR/jack input with individually switchable mic/instrument impedance and +48V phantom power for the XLR. Input channels have High/Low EQ and Pan controls. The B/T pairing button enables wireless connection to a smart phone or tablet for playback. All CSD mixers feature a 16 program DSP effects section with digital reverbs, delays and modulation effects for vocals and instruments. Output is delivered on a pair of balanced XLR connectors and offers very low noise operation for high quality studio or live performances.
- B/T wireless pairing for smartphone or tablet
- 16 program, 24-bit DSP effects engine
- Individually switchable +48V phantom power
- Supplied with DC power adaptor
Specification : Common
- Power supply5Vdc 1A (adaptor included)
- Power consumption max.5W
- EQ: low±15dB @ 80Hz
- EQ: high±15dB @ 12kHz
- Phantom power+48V individually switchable (XLR inputs only)
- Effects16 program DSP (24-bit sigma-delta, 40kHz)
- Audio sourceB/T wireless receiver
- B/T wireless version2.1 + EDR
- Input impedance : mic2k Ohms
- Input impedance : instrument1M Ohms
- Input impedance : line20k Ohms
- Frequency response20Hz - 20kHz (±0.5B)
- THD +N<0.03% @ 1kHz
- Dynamic range102dB
- Crosstalk : stereo92dB
- OutputLeft + Right balanced XLR
- Output impedance120 Ohms
- Max. output level3Vrms
| 170.875UK | 170.876UK | 170.877UK | |
|---|---|---|---|
| Inputs | 2 x combo XLR/jack + stereo jack | 4 x combo XLR/jack + stereo jack | 6 x combo XLR/jack + stereo jack |

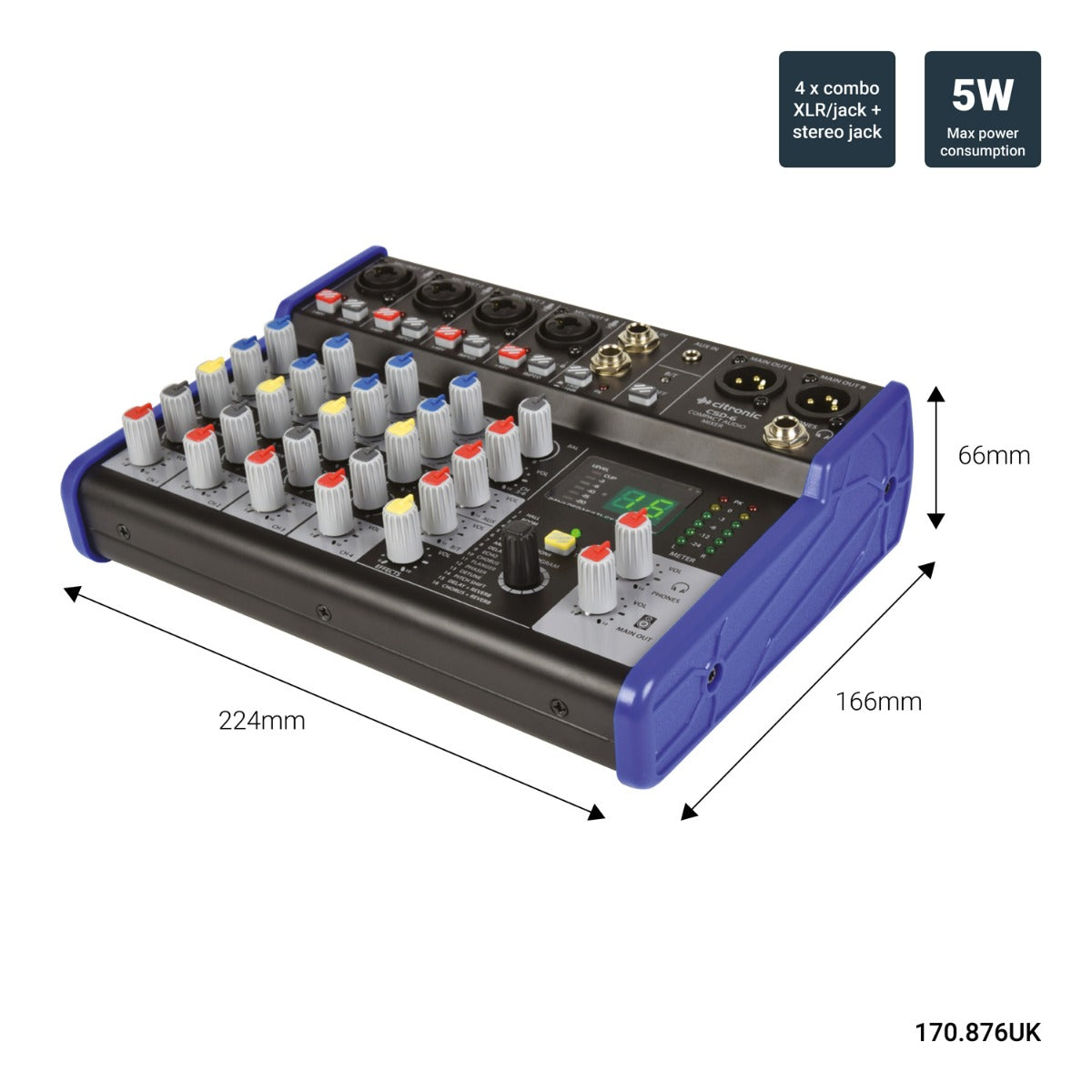

| Dimensions | 171 x 166 x 66mm | 224 x 166 x 66mm | 274 x 166 x 66mm |
| Weight | 0.92kg | 1.19kg | 1.46kg |
