• ADASTRA ML622 6 Mic + 2 Aux Rack Mixer 1U
1 1

Adastra

ADASTRA ML622 6 Mic + 2 Aux Rack Mixer 1U

2.950,00 kr
2.950,00 kr
MVA inkludert.

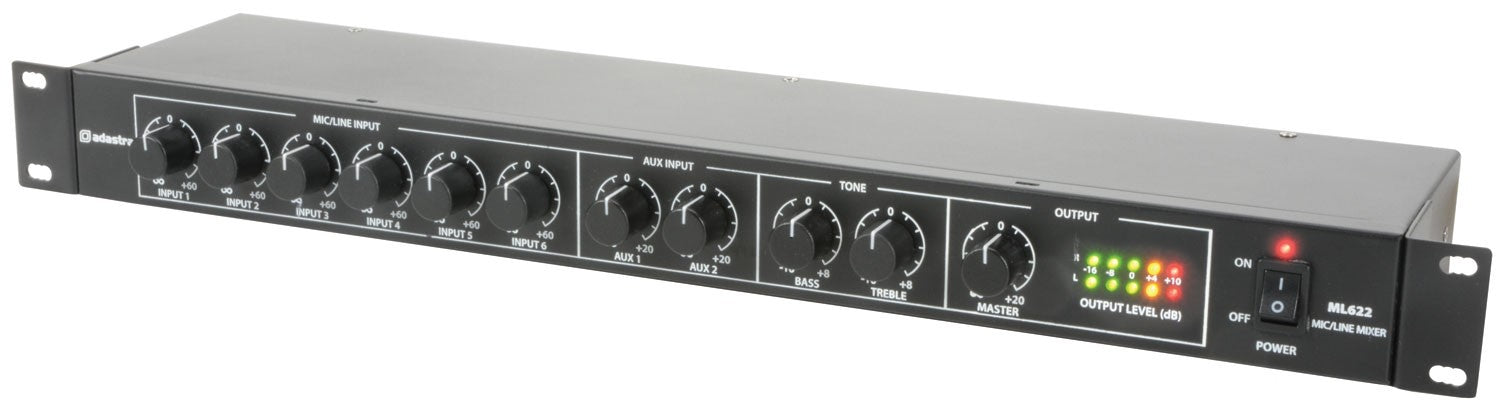

1U Mic/Line Rack Mixer

Rack-mountable 1U mixer with 6 mic/line inputs and 2 auxiliary inputs. Each mic/line channel has switchable phantom power and input level. Output connections are stereo XLR, mono jack or REC output on RCA with master bass and treble tone controls. Designed as a master or expansion mixer for installed sound systems and conferences.

  • 6 switchable mic or line inputs
  • 2 stereo aux inputs
  • Individually switchable phantom power
  • 24Vdc power option

Specification

  • Power supply100-240Vac, 50/60Hz (IEC) or 24Vdc (terminals)
  • FuseT1AL 250V (mains) or F500mA (24Vdc)
  • Phantom power+20Vdc (switchable)
  • Inputs : mic/line6 x balanced XLR
  • Inputs : aux2 x L+R RCA
  • OutputsL+R XLR, mono 6.3mm jack, L+R RCA (REC)
  • Controls6 x Mic/Line level, 2 x Aux level, Treble, Bass, Master
  • Input impedance3.3k Ohms (mic/line), 10k Ohms (aux)
  • Frequency response : mic20Hz - 18kHz
  • Frequency response : line14Hz - 20kHz
  • Frequency response : aux10Hz - 23kHz
  • Input sensitivity : mic-45dBV
  • Input sensitivity : aux/line-10dBV
  • Signal to noise ratio : mic55dB
  • Signal to noise ratio : aux/line60dB
  • THD0.05%
  • Dimensions482 x 130 x 44mm
  • Weight1.43kg
