CSD kompakt Mikser med BT-trådløs og DSP effekter

Vanlig pris: 2.495,00 kr
Vanlig pris
Salgs pris: 2.495,00 kr

MVA inkludert.

Produktvarianter

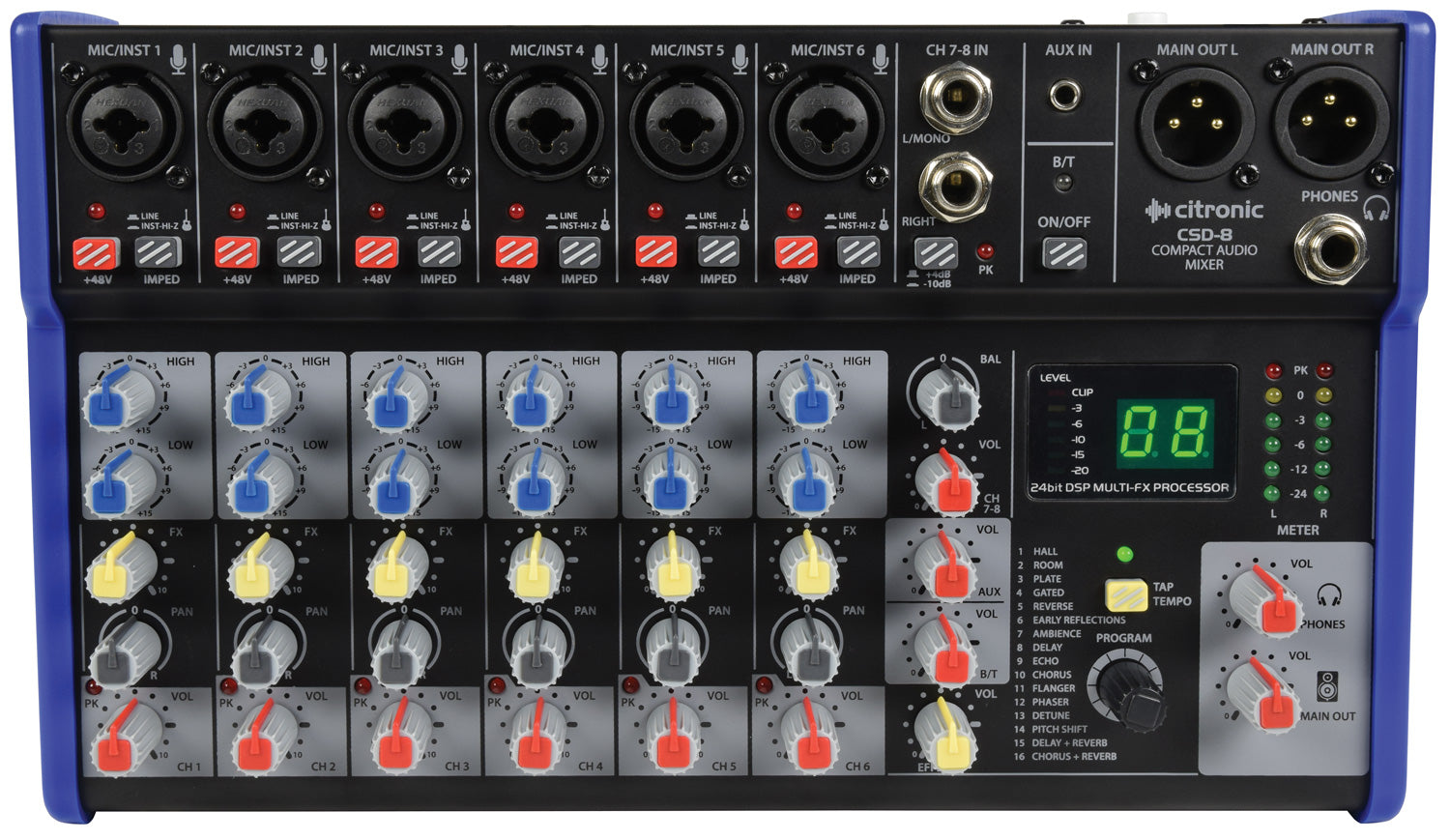

CSD Compact Mixers with BT wireless and DSP Effects

Compact format audio mixer with 2, 4 or 6 mono input channels and a stereo line input. Each mono channel has a combo XLR/jack input with individually switchable mic/instrument impedance and +48V phantom power for the XLR. Input channels have High/Low EQ and Pan controls. The Bluetooth pairing button enables wireless connection to a smart phone or tablet for playback. All CSD mixers feature a 16 program DSP effects section with digital reverbs, delays and modulation effects for vocals and instruments. Output is delivered on a pair of balanced XLR connectors and offers very low noise operation for high quality studio or live performances.

Bluetooth pairing for smartphone or tablet
16 program, 24-bit DSP effects engine
Individually switchable +48V phantom power
Supplied with DC power adaptor

Effects16 program DSP (24-bit sigma-delta, 40kHz)
Power supply5Vdc 1A (adaptor included)
OutputLeft + Right balanced XLR
Audio sourceBluetooth receiver
Bluetooth version2.1 + EDR
Power consumption max.5W
EQ: low±15dB @ 80Hz
EQ: high±15dB @ 12kHz
Phantom power+48V individually switchable (XLR inputs only)

Input impedance : mic2k Ohms
Input impedance : instrument1M Ohms
Input impedance : line20k Ohms
Frequency response20Hz - 20kHz (±0.5B)
THD +N<0.03% @ 1kHz
Dynamic range102dB
Crosstalk : stereo92dB
Output impedance120 Ohms
Max. output level3Vrms

Versions

	170.875UK	170.876UK	170.877UK
Inputs	2 x combo XLR/jack + stereo jack	4 x combo XLR/jack + stereo jack	6 x combo XLR/jack + stereo jack

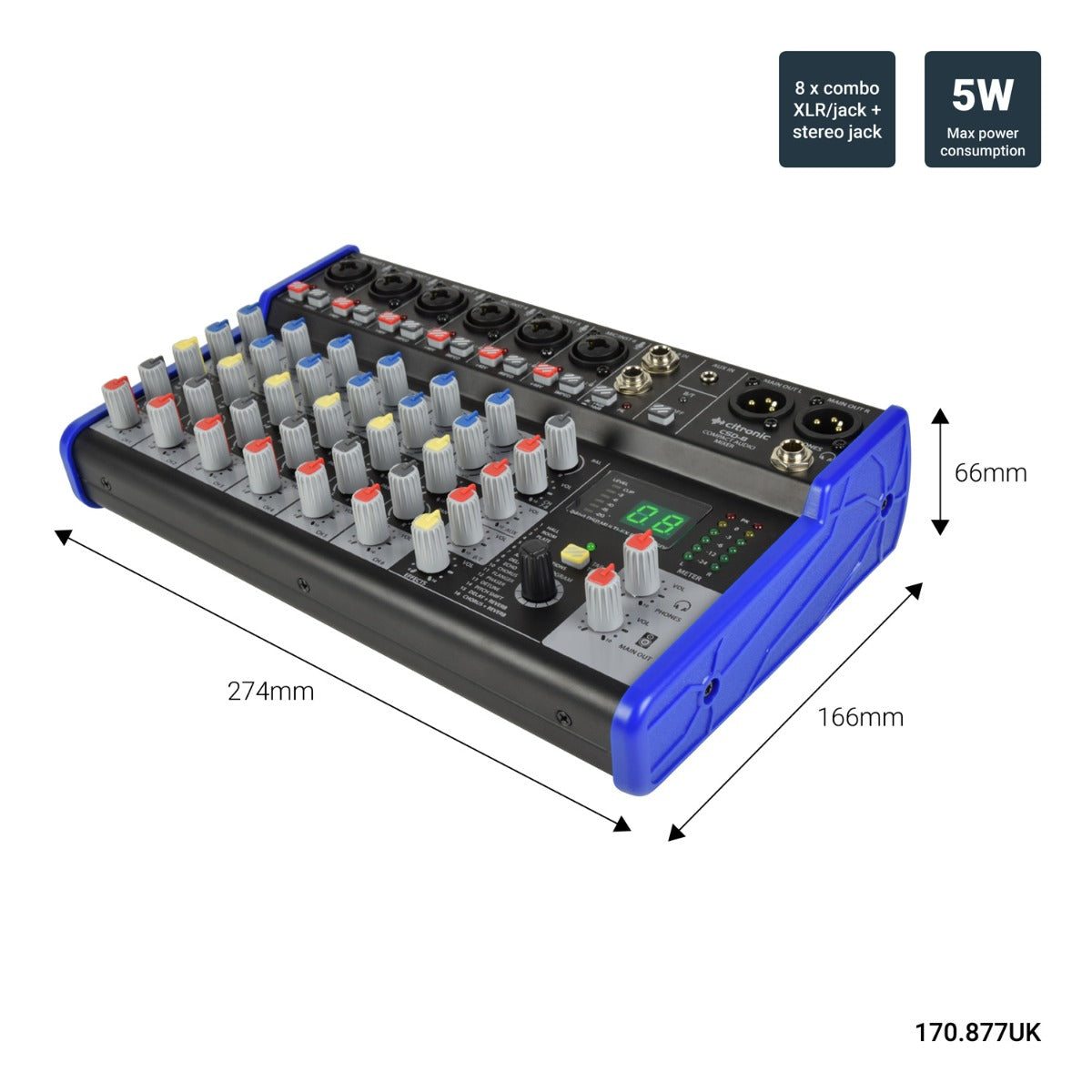

Dimensions	171 x 166 x 66mm	224 x 166 x 66mm	274 x 166 x 66mm
Weight	0.92kg	1.19kg	1.46kg
